石墨密封产品
CARBON SEAL PRODUCTS
|
・概要
将石墨加工成型而制成的非石棉密封产品。由于具有优良的耐热及密封性能，所以作为密封材料被广泛
的使用在汽车，摩托车的排气连接部。以石墨及丝网的复合加工而制成的石墨密封产品。
本公司拥有雄厚的技术力量可生产高强度的产品。
・OUTLINE
It is the seal product of the non-asbestos which
carried out compressing process of expanded graphite.
With superior heat resistance and sealing ability, it is
used in various places as sealing material for exhaust
pipe joints of automobiles and two wheeled vehicles.
Composite material of graphite and wire mesh are formed
simultaneously to produce a high strength product.
・特性
1)由于其具有优良的耐热性，密封性，所以易帖附在排气管连接槽处。
2)根据用途，目的的不同，有不同的材料，形状及密度可供选择。
3)根据选用材料某些产品可以在高温下使用。
・FEATURES
1)It excels in heat resistance and sealing ability and
is easy to adjust to flange.
2)It is possible to select the material, form, and
density for the use and the purpose.
3)It is possible to be used in high temperature by
selecting material.

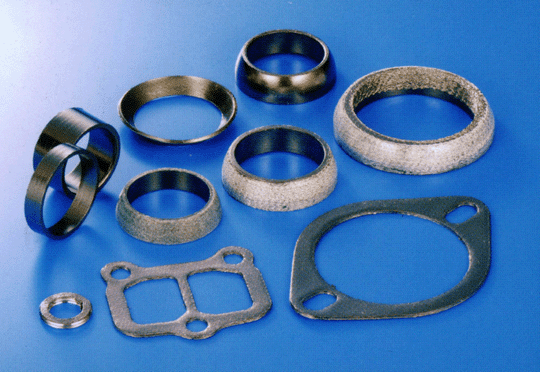

・样本 SAMPLES
|
|
|

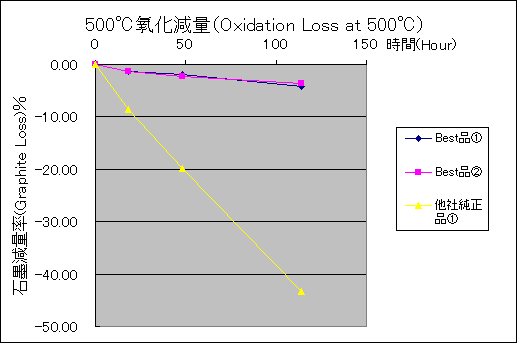

・球面密封体 氧化減量试验值 （Oxidation-loss Test of
Spherical Seal Material）
|
|
| |
Best品① |
Best品② |
他社純正品① |
| 0 |
0.00 |
0.00 |
0.00 |
| 18 |
-1.28 |
-1.35 |
-8.61 |
| 48 |
-1.94 |
-2.21 |
-19.82 |
| 114 |
-4.28 |
-3.66 |
-43.40 |
| |
|
|
|
| |
Best品③ |
Best品④ |
他社純正品② |
| 0 |
0.00 |
0.00 |
0.00 |
| 18 |
-12.52 |
-9.97 |
-72.25 |
| 48 |
-40.61 |
-32.97 |
-100.38 |
| 114 |
-82.38 |
-79.54 |
-100.86 |
|
|
|
|
|
|
| |
|
|
