织网产品
Knitted Wire Mesh Products
|
・概要
细金属线编织成网后按规定长度切割，然后通过冲压加工制成具有柔软性能的缓冲材料。
因具备抗高温性，故被广泛地用于汽车排气系统的多歧管，排气管周围及引擎遮热罩的防震缓冲垫等。
发挥其优良的耐热，防震，降噪效果。另外也可作为抗高温的过滤产品使用。
・OUTLINE
It is cushion material with the flexibility which cut
the fine-extended metal wire composed in the shape of
stockinet by predetermined length, and carried out
compressing in press processing further. Since it can be
used in high temperature atmosphere, it is used for
exhaust manifold and the periphery of exhaust pipe of
automobiles, vibration-proofing washer of engine
insulating cover, etc., and outstanding heat resistance,
vibration-proofing, and soundproof effect are
demonstrated. It is also used as filter in high
temperature atmosphere.
・特性
1)优良的耐热，防腐性，被广泛用于防震发条，缓冲材，防震材料等。
2)根据用途，目的的不同，有不同的材料，形状及密度可供选择。
3)根据选用材料可以在高温下使用。
4)使用自动编网机，自动成型机（专用设备），通过大批量生产，可降低成本。
・FEATURES
1)With superior heat resistance and corrosion
resistance, it has various ways such as a
vibration-proofing spring, shock absorbing material, and
cushion material.
2)It is possible to select the material, form, and
density for use and purpose.
3) It is possible to be used in high temperature by
selecting material.
4)Introducing automatic knitting machine, automatic
compressing machine (special-purpose machine), for
reduction in cost.
・制作标准 PRODUCT SPECIFICATION
|
|
項 目 ITEM
|
仕 様 SPECIFICATION
|
材质
MATERIAL
|
ＳＵＳ304、ＳＵＳ316、ＳＵＳ310Ｓ、镀锌铁线、镀铜铁线、英格内尔601等SU
S304 SUS316 SUS310S Galvanized iron wire,Copper
plated iron wire, Inconel601 etc
|
线径
DIAMETER
|
φ0.15㎜～φ0.5㎜程度
Not much more than φ0.15mm to φ0.50mm
|
编网方法
HOW TO
|
针织1线編～4线編
Knitted by single wire ～ 4pcs of wire
|
密度
DENSITY
|
约0.9g/㎤～4.0g/㎤
Not much more than 0.9 to 4.0g/cm3
|
|

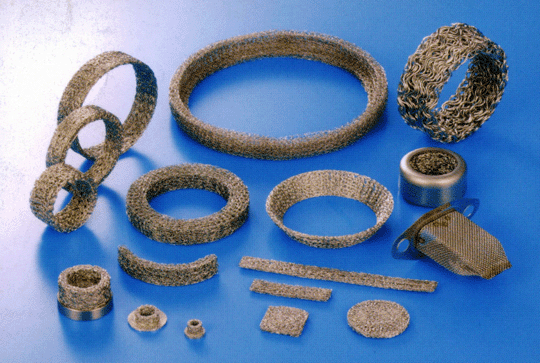

・样本 SAMPLES
|
|
| |
|
|
