| 产品展示 |
|
|
|
| |
|
|
| |
|
| |
|
| |

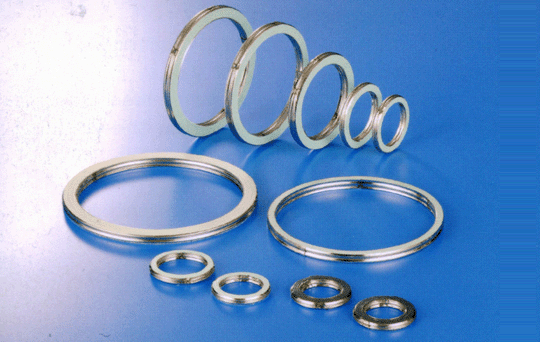

缠绕状网垫
SEMI-METALLIC SPIRAL-WOUND GASKET
|
・概要
此网垫由金属制薄带（薄刚带）和非金属制缓冲材料（非石棉）交替缠绕，
起卷时和终卷时使用强力焊接之网垫。具有高度压缩复原特性，可在高温环境中使用
・OUTLINE
This gasket is formed by alternating steel thin tape
(hoops) and non-ferrous cushioning materials
(non-asbestos filler), wound in spiral shape with the
starting and ending ends firmly welded. It has such
feature as excellent compressibility and recovery,
reliable sealing effect, can be used in high temperature
atmosphere.
・特性
1)由于彻底实施完善的制造生产管理方法，故作为纯正汽车配件被认定和广泛使用。
2)由于使用全自动化生产设备体系，可以保证高品质的同时降低成本。
3)具备量产能力，稳定供货。
・FEATURES
1) It is adopted as genuine parts by the thorough
quality management of product.
2) The full automatic production system provides
products with high quality and reduction in cost.
3) Preeminent stable supply capability with equipping
mass production capability.
・制作标准 PRODUCT SPECIFICATION
|
|
項 目 (ITEMS)
|
标 准 (SPECIFICATION)
|
備考
（RIMARKS)
|
外径／内径／高度
OD / ID / Thickness
|
外径（OD)：φ２７～φ１５０㎜ 内径（ID)：φ２０～φ１４４㎜
厚度（Thickness)：３～６㎜
|
|
薄刚带
Steel Hoop material
|
材质：ＳＵＳ304材 、ＳＵＳ430材、 ＳＰ材等
MATERIAL： SUS３０４、 SUS４３０、 SP、etc
|
|
缓冲材
Cushioning Material
|
材质：非石棉材、石墨密封材 等
MATERIAL： Non-Asbestos Paper, Graphite Sheet, etc
|
|
|

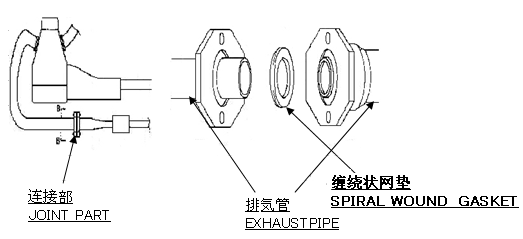

・用途 USE
连接发动机排气管和消音器的密封材料
The Gasket of a part which connects a muffler with an
engine exhaust pipe
・出货实绩 DELIVERY RECORD
日本主要摩托车厂家（本田，雅马哈，铃木，川崎等）的纯正配件。
We are supplying products to Japanese main two wheeled
vehicles (motorbike) maker “HONDA, YAMAHA, SUZUKI, and
KAWASAKI” as genuine parts.
|
|
| |
|
|
